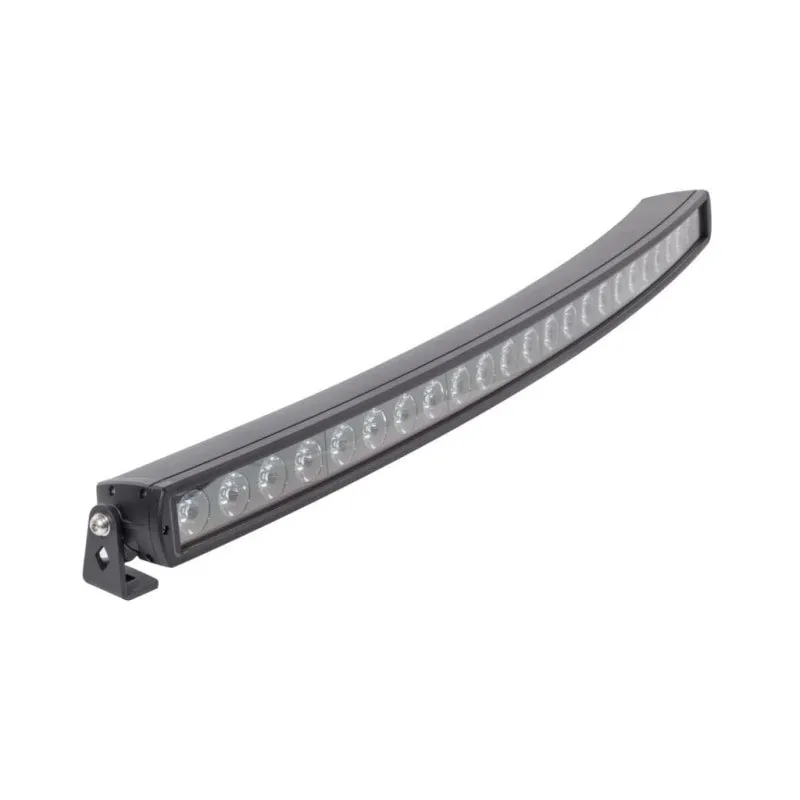

51 Inch SX Series LED Curved Lightbar by Ignite
Ignite SX Series Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 320 Watt
Features
- Light Transmittance >95%
- Integrated Electronic Thermal Management (ETM)
- Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
- Dual Mounting Systems; Bottom Mount Brackets and Side Mount Brackets
- Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
- 500mm Lead with 2 Pin Deutsch Plug
- Over and Under Voltage Protection
- Combined Spot (Pencil) and Flood (Spread) Beam Patterns 15 Degrees, 35 Degrees
- Reverse Polarity Protection
- UV, Water and Shock resistant
- 50,000 Hours LED Lifespan
- ECE R112, R10 and CE Approved
- IP68 and IP69K Rating
- Environment Temperature: -40°C ~ 60°C
- 33,120 Raw Lumens and 6,000K
- 1 Lux @ 519m and 269,361cd Peak Beam Intensity
- Proprietary Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
Specifications
- Beam Type: Combined
- Depth (mm): 70
- Height (mm): 56
- Rows: Single
- Mount: Other
- No. of LED: Other
- Series: Other
- Type: LED
- Voltage: Multivolt
- Watts: Other
- Width (mm): 130
- Current Draw: 22amp @ 12 Volt and 10.6amp @ 24 Volt
Warranty
- 5 Year Manufacturer Warranty
