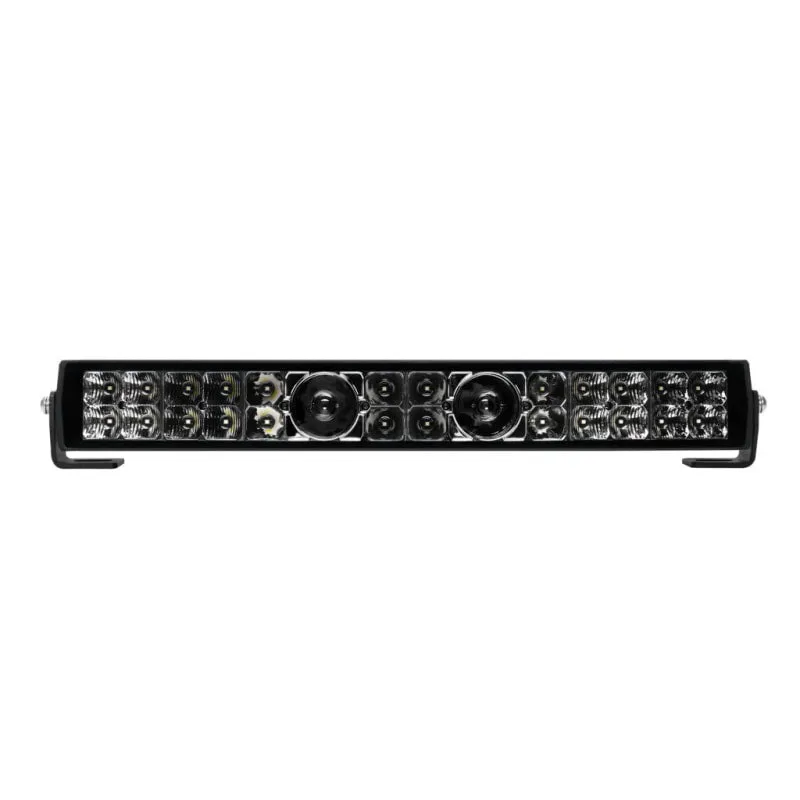

20 Inch Dual Row Laser LED Driving Lamp Lightbar by Ignite
Ignite 20" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 136 Watt
Features
- Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
- Light Transmittance >95%
- Integrated Electronic Thermal Management (ETM)
- Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
- and Pressure Equalising Vent
- Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
- Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
- Combined Laser and LED Illumination Technology
- 500mm Lead with 2 Pin Deutsch Plug
- Over and Under Voltage Protection
- Reverse Polarity Protection
- UV, Water and Shock resistant to 15G
- Anti Rust, corrosion and freezing resistance
- 50,000 Hours LED Lifespan
- ECE R112, R10 and CE Approved
- IP68 and IP69K Rating
- Environment Temperature: -40°C ~ 60°C

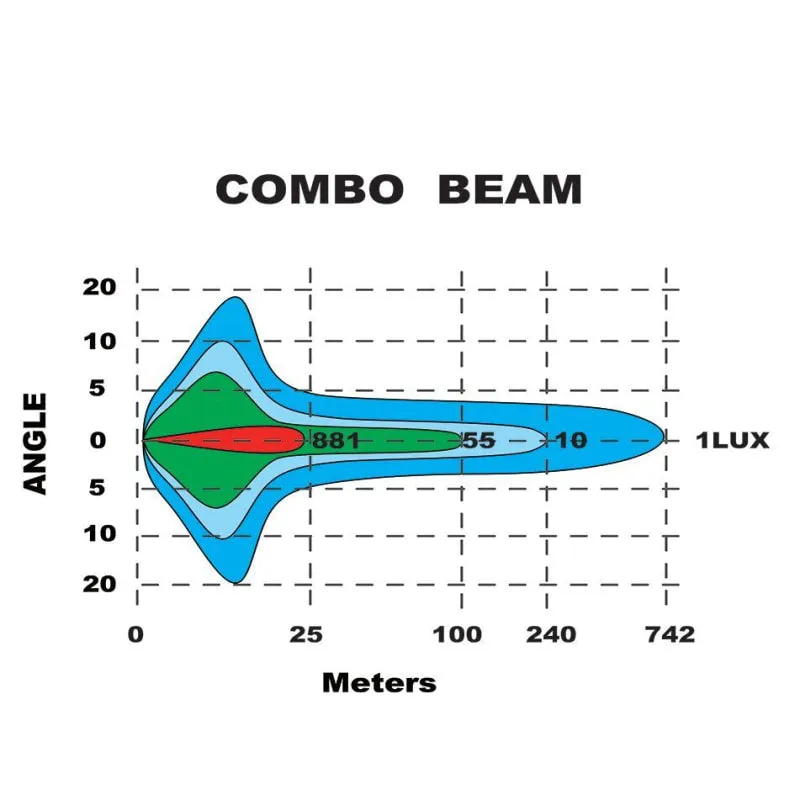

- 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
- 24 x 4 Watt High Intensity LP LED's and 2 x 20 Watt High Intensity Osram Laser LED's
- 11,500 Raw and 9,800 Effective Lumens and 6,000K
- 1 Lux @ 742m and 551,000 cd Peak Beam Intensity
- Current Draw: 9.8amp @ 12 Volt and 4.8amp @ 24 Volt

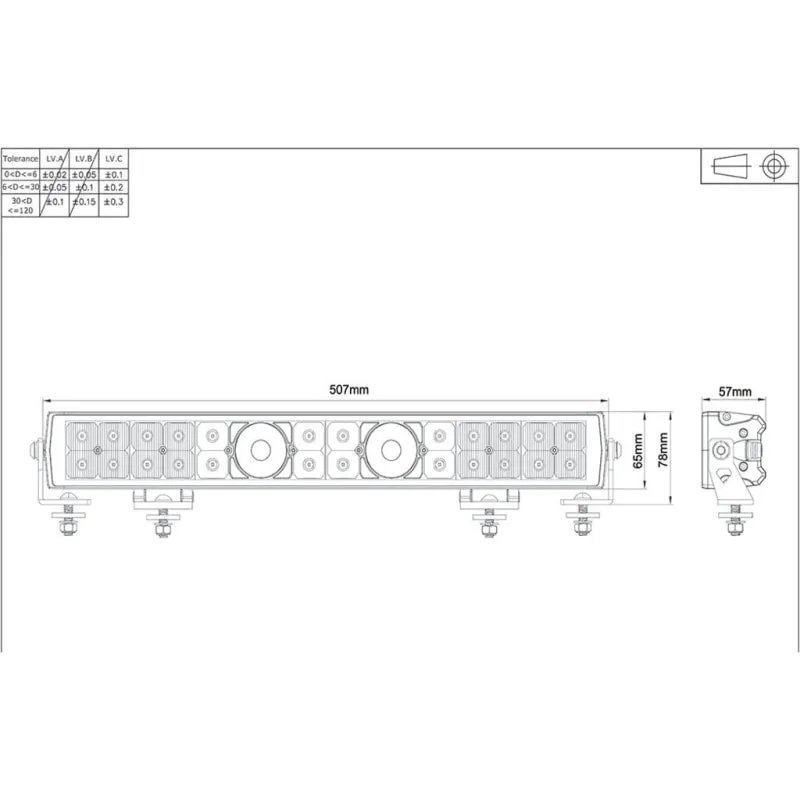

Specifications
- Beam Type: Combined
- Depth: 5.7cm
- Height: 6.5cm
- Rows: Double
- Mount: Other
- No. of LED: 24
- Series: Other
- Type: LED
- Voltage: Multivolt
- Watts: Other
- Width (mm): 507
Warranty
- 5 Year Manufacturer Warranty
