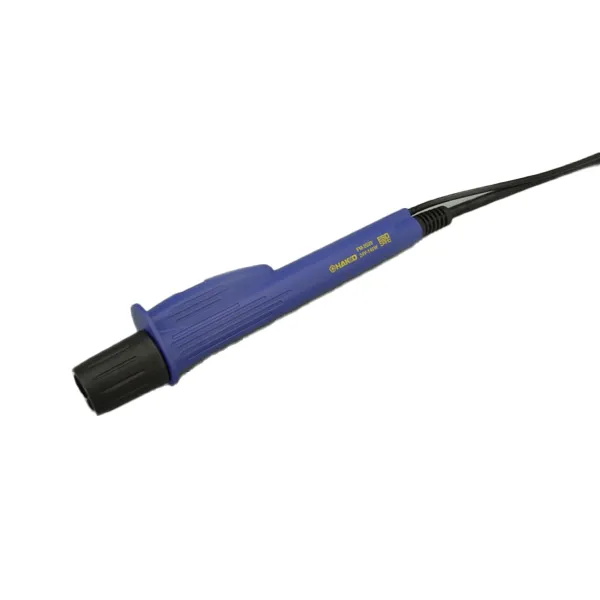

- Single-nozzle hot air handpiece designed exclusively for HAKKO FM-206 3-Port High Performance Rework Station.
- Slim grip is ideal for work in narrow spaces
- Hand switch enables easy ON/OFF operation
Please refer to the for detailed specifications.
Features
Designed for FM-206
Hot air handpiece for use with FM-206, a compact multi-rework station that enables simultaneous use of three handpieces. It allows for safe removal of 10 x 10 mm chips.
Air Control
Control the air flow with a hand switch via a connectable handpiece holder. Connect HAKKO FM-206 and the handpiece holder with a relay cord to turn off the air automatically when the handpiece is placed in the handpiece holder. Turn on the air again by operating the hand switch. The air does not turn on automatically when the handpiece is picked from the handpiece holder.
Various nozzles for different works
The nozzle is a built-in heater composite-type unit.
The composite-type nozzle provides excellent thermal recovery and easy one-touch nozzle replacement. Heater replacement, which used to be difficult with the hot air-type, is no longer required. Choose from four optional nozzles for different size work.
Specifications
- Please note: FM-206 and N4 Nozzle to be purchased separately
- Power consumption: 140W (24V)
- Temperature range: 100 to 550ºC
- Nozzle to ground resistance: <2Ω
- Nozzle to ground potential: <2mV
- Heating element: Composite heater
- Cord length: 1.2m
- Total length: 232mm (with Φ4.0mm nozzle, without cord and tube)
- Weight 50g: (with Φ4.0mm nozzle, without cord and tube)
